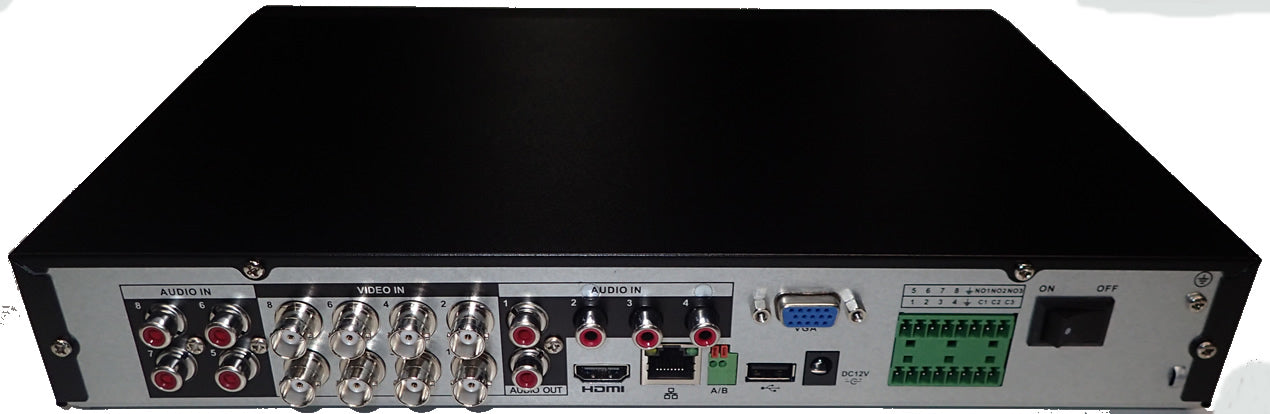

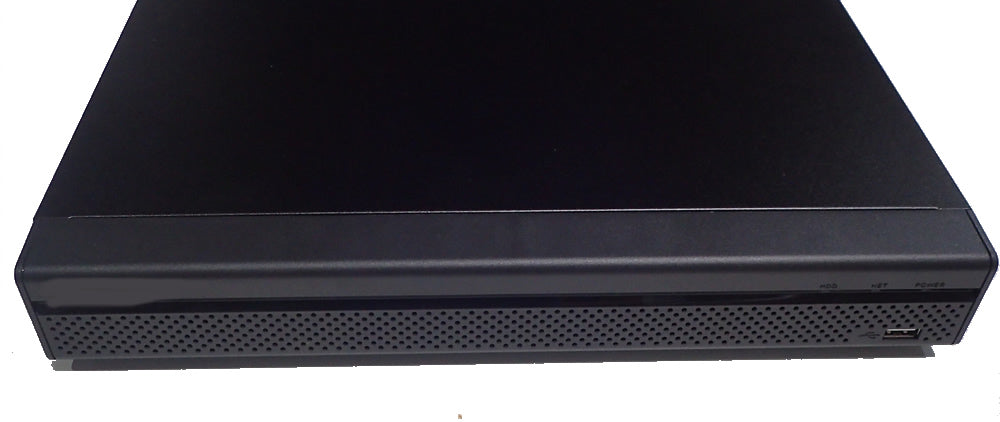

8 Channel HD 1080p DVR 4mp
Move your mouse over image or click to enlarge

8 Channel HD 1080p DVR 4mp

DVR-HD8CH4TB-4MP
  • $599.65
    Unit price per


Features
  • Embedded Processor
  • Dual-stream Video Recording
  • Smart H.264+ Video Codec
  • Supports HDCVI, AHD, CVBS, TVI, and IP Video Inputs
  • 8 + 4 IP Camera Channels, each channel up to 8 MP
  • Maximum 48 Mbps Incoming Bandwidth
  • Internet of Things Sensor Integration
  • Smart Search and Intelligent Video System
  • Supports HDCVI/CVBS Loop Out
HDD 2 SATA Ports, up to 10 TB capacity for each disk
ODD N/A
Operating System Embedded LINUX
Video Compression Format Smart H.265+, H.265, Smart H.264+, H.264
Video Input Eight (8) Channels, BNC
Input Type Supports HDCVI/AHD/TVI/CVBS/IP Video Inputs
Video Output 1 HDMI, 1 VGA
Audio Input / Output 4-input/1-output (RCA)
Audio Compression AAC (first channel only), G.711A, G.711U, PCM
Recording Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording Quality Grade 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 4 M-N (1280 x 1440), 1080p, 720p, 960H, D1, CIF
Dispaly Rate 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768
Motion Detection Yes
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to 1 second)
Alarm Output Three (3) Channels
USB Port 1 x USB 2.0 Port,1 x USB 3.0 Port
Serial Interface RS485 Port for PTZ Control
Backup USB Device/Network
PTZ Control 1 port via RS485
Network Interface One (1) RJ45 (1000 Mbps) Port
Remote Surveillance Yes
Mobile Surveillance IOS, Android
Mouse and Remote 1 x Mouse included
Power Source 12 VDC, 4 A
Power Consumption < 10 W, without HDD
Operating Temperature –10° C to +55° C (+14° F to +131° F), 10% to 90% RH
Dimension (W x H x D) 1U, 375.0 mm x 287.15 mm x 53.0 mm (14.80 in. x 11.31 in. x 2.09 in.)
