Emergency Light Hidden Camera HD 1080p
SSC-205CHDHD Emergency Light Hidden Camera Hard Wired

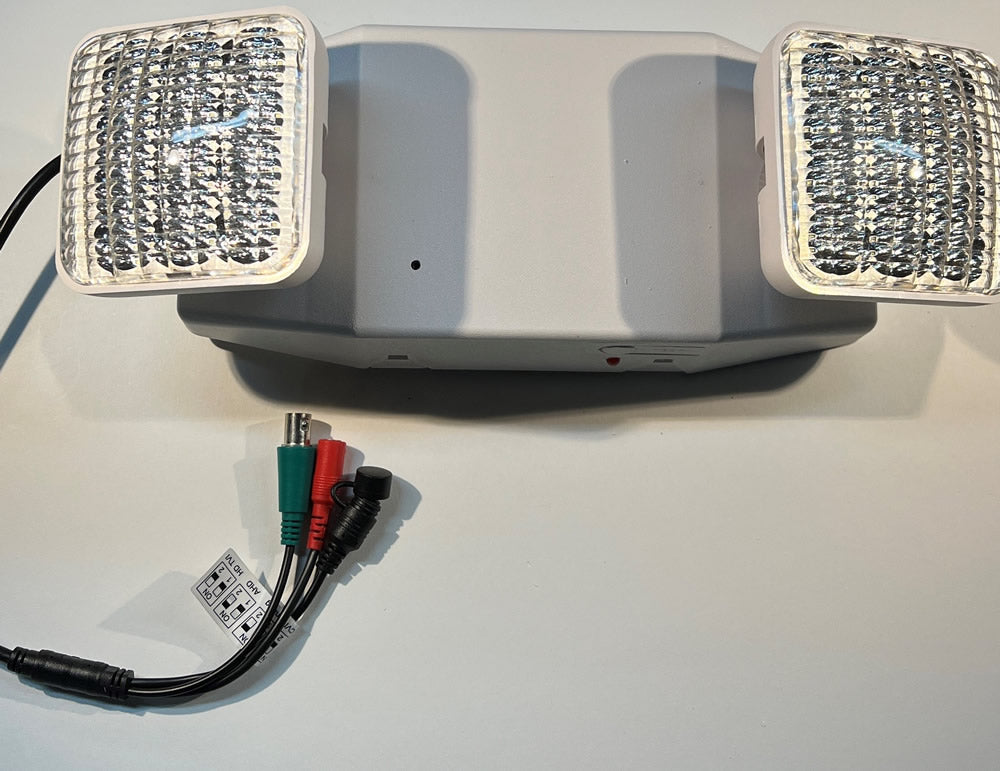

This fully functioning emergency light outputs 1080p HD high definition video. The emergency light is powered by traditional 120/277 VAC just like an emergency light would. The light is fully functional with the factory battery back-up and will come on when power is lost.
The camera portion of the fixture is powered separately by 12 volts DC. We include a 12 volt power supply and also power video baluns in case you plan to use CAT5 or CAT6 to connect to your DVR.

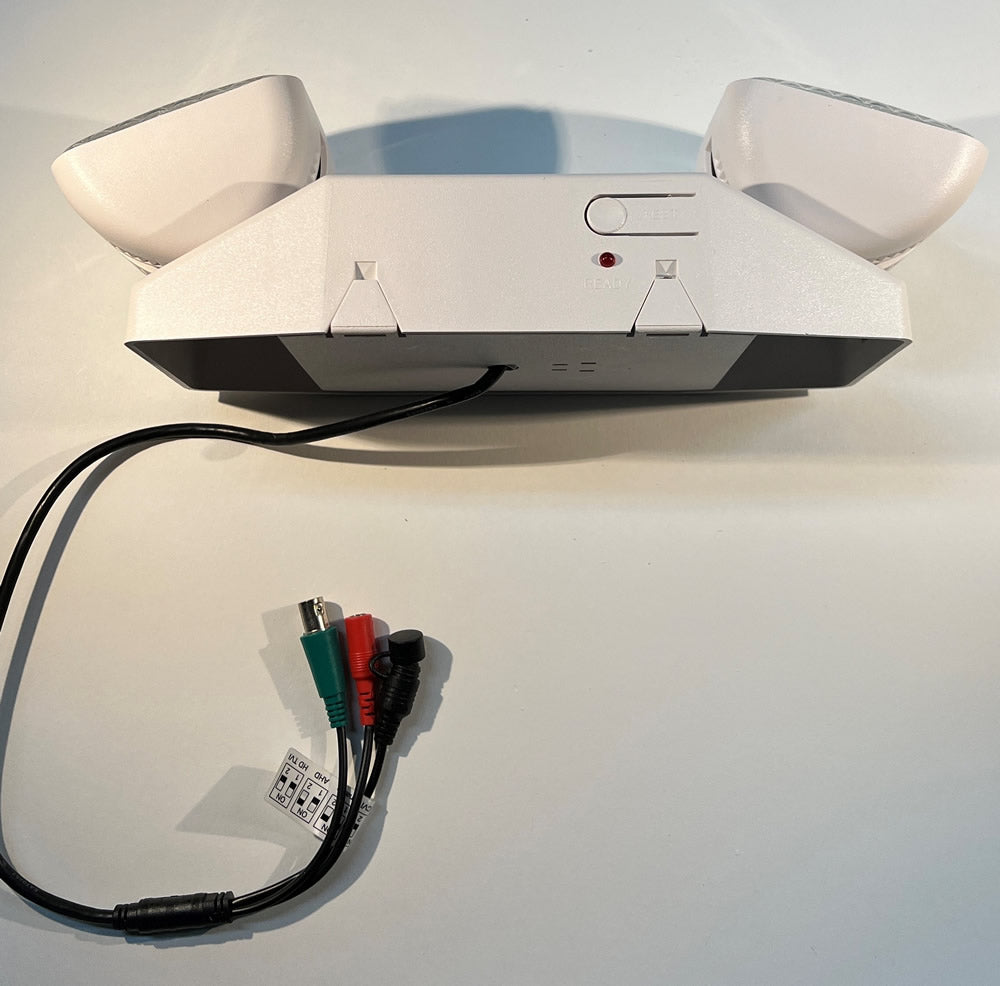

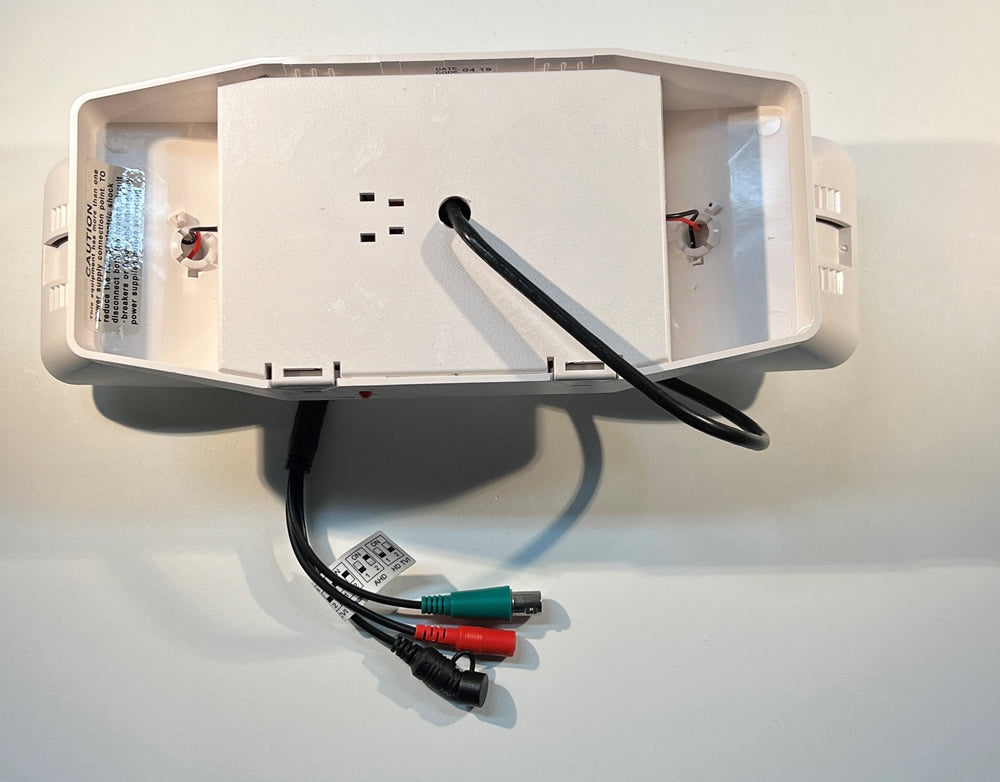

The video wire coming out of the emergency light is what you would connect to your HD DVR.
Power Video Cable or CAT5

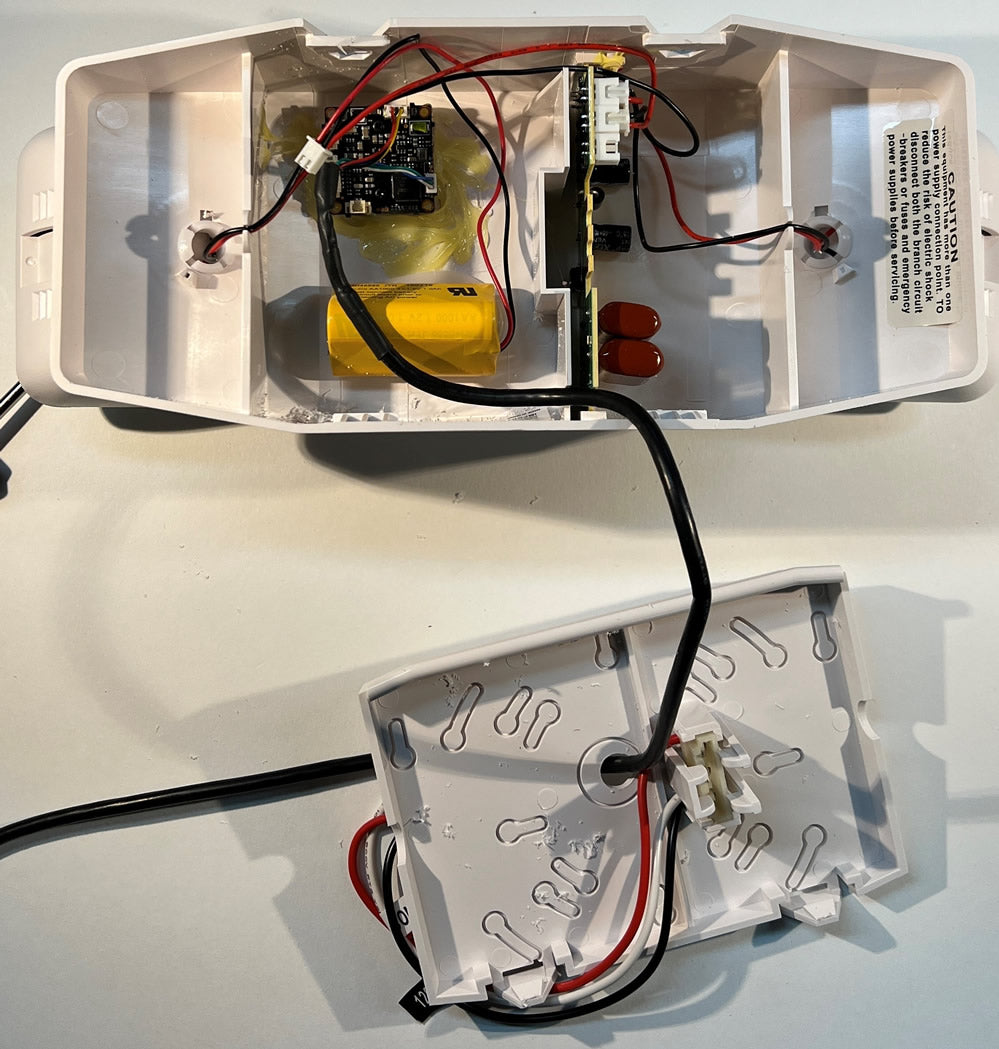

There will be a power video wire coming off the pinhole camera inside the emergency light that will go into your wall or ceiling and then it must run to your HD DVR. A person can also use CAT5 instead of our conventional power video cable. The CAT5 will be able to accommodate power and video by using power/video baluns. When using CAT5 cable you will only have to drill a 1/4 inch in your ceiling or ceiling tile to install this hard wired hidden camera.
Viewing And Recording Take Place Using a High Definition DVR
The technology in this high definition camera allows the user to select between CVI, TVI, AHD or analog. This is what allows it to send uncompressed full HD video over regular video cable. Because it is a special high definition interface it must be used with a high definition DVR. You use traditional coax cable to run the camera to the DVR. The DVR has an HDMI and a VGA output for connection to your HDTV or monitor. Both video outputs can be used at the same time in order to enjoy multiple monitors in different locations. We have a 4, 8 and 16 channel standalone to choose from.
