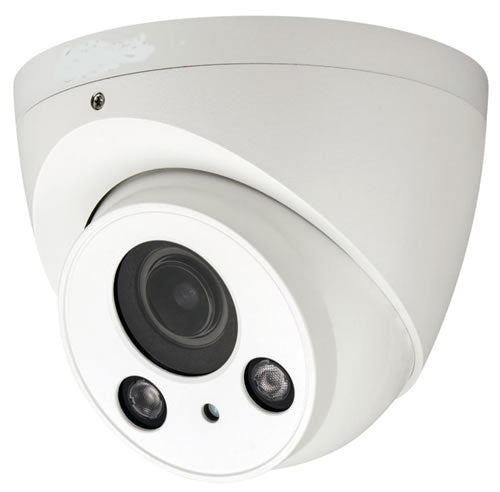

HD VARIFOCAL ARMOR DOME 5MP
SSC-IRDHDVMA5-AR
Feature
- Sony IMX326 1/2.9
- Motorized Lens: 2.7-13.5mm
- IR range at 98ft (30 Meters)
- 2560x1920 picture resolution
- IP66 rated
- Minimum illumination : 0LUX (with IR LED on)
- Auto Gain control, Auto white balance and use ICR mechanical switch for Day, Night conversion
- 12VDC/300mA
Image Sensor | Sony IMX326 1/2.9 |
Effective Pixels | 2560x1440, 2560x1944 |
Electronic Shutter | PAL:1/25S-1/50000s.NTSC:1/30-1/50000s |
Lens | 2.7mm-13.5mm |
S/N Ratio | More than 48dB |
Min. Illumination | 0 Lux (with IR LED On) |
Video Output | A/T:5MP A/C/T:4MP CVBS |
IR LED Unit | 2 Matrix IR |
Max. IR LEDs Length | 50 Meters |
Day/Night | ICR mechanical switch |
OSD Menu | Yes (TVI) |
Power Supply | 12VDC/400mA |
Power Consumption | 400mA |
Storage Temperature | -30°C~+60°C |
Working Environment | -10°C~+55°C |
Ingress Protection | IP 66 |
Dimensions | 5.70" x 3.74" inch |
Weight | 1.36 lb |
