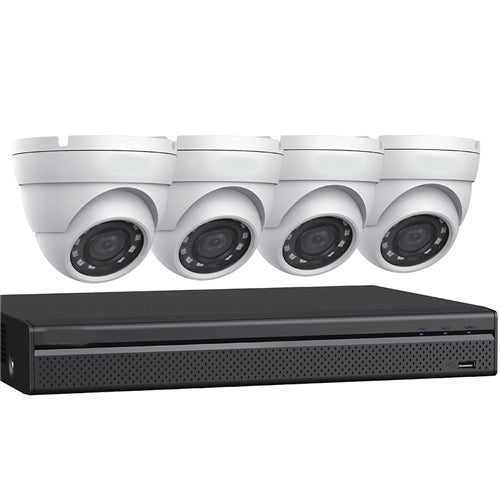

Features
- 4 MP HD Cameras
- 4 MP at 30 fps Resolution
- 2.8 mm Fixed Lens
- Maximum IR Length 30 m (98 ft) with Smart IR
- IP67 Environmental Protection
HD DVR
- Embedded Processor
- Four (4) Channel Penta-brid Recorder
- Support for 4+2 IP Channels
- Smart H.265+ and Smart H.264+ Dual Codec
- 4K at 7 fps or 1080p at 30 fps Maximum Record Rate
- Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
- 24 Mbps Incoming Bandwidth
Technical Specification
HD Camera Camera Image Sensor 1/2.7-in. CMOS Effective Pixels 2592 (H) x 1944 (V), 5 MP Scanning System Progressive Electronic Shutter Speed 1/30 s to 1/100000 s Minimum Illumination Color: 0.02 Lux at F1.85 (30 IRE) 0 Lux with IR on S/N Ratio More than 65 dB IR Distance Up to 30 m (98.04 ft) IR On/Off Control Auto, Manual IR LEDs 12 Lens Lens Type Fixed Lens / Fixed Iris Mount Type Board-in Focal Length 2.8 mm Max Aperture F1.85 Horizontal Angle of View 103° Close Focus Distance 900 mm (35.43 in.) DORI¹ Distance Detect (8 ppf) Observe (19 ppf) Recognize (38 ppf) Identify (76 ppf) 63 m (207 ft) 25 m (82 ft) 13 m (43 ft) 6 m (20 ft) Installation Angle Range Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360°
Technical Specification 4K HDCVI DVR
System Main Processor Embedded Processor Operating System Embedded LINUX Interface Analog Camera Input Four (4) Channels, BNC HDCVI 8 MP, 6 MP, 5 MP, 4 MP, 1080p at 30 fps, 720p at 60 fps AHD 5 MP, 4 MP, 3 MP, 1080p at 30 fps; 720p at 30 fps TVI 5 MP, 4 MP, 3 MP, 1080p at 30 fps; 720p at 30 fps CVBS NTSC IP Camera Input 4+2 Channels, each channel up to 8 MP Audio Input One (1) Channel, RCA Output One (1) Channel, RCA Two-way Talk Reuse Audio In/Out, RCA Recording Compression Smart H.265+, H.265, Smart H.264+, H.264 Recording Resolution 4K, 6 MP, 5 MP, 4 K-N, 4 MP, 3 MP, 4 M-N, 1080p, 720p, 960H, D1, CIF Record Rate Main Stream Channel 1: • 8 MP at 7 fps • 6 MP at 10 fps • 5 MP at 12 fps • 4 MP or 3 MP at 15 fps Channels 2 to 4: • 4 K-N at 7 fps • 4 MP or 3 MP at 15 fps • 4 M-N or 1080p at 30 fps Sub Stream • 960H at 15 fps • D1 or CIF at 30 fps Maximum Incoming Bandwidth 24 Mbps Bit Rate 32 Kbps to 6144 Kbps per Channel Record Mode Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Record Interval 1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s Audio Compression AAC (first channel only), G.711A, G.711U, PCM Audio Sample Rate 8 KHz, 16 bits per Channel Audio Bit Rate 64 Kbps per Channel Display Interface One (1) HDMI One (1) VGA Native Output Resolution HDMI 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 VGA 1920 x 1080, 1280 x 1024, 1280 x 720 Maximum Decoding One (1) Channel of 8 MP at 30 fps Four (4) Channels of 4 MP at 15 fps Four (4) Channels of 4 M-N at 30 fps Multi-screen Display IP extension mode disabled: 1/4 IP extension mode enabled: 1/4/6 On-screen Display Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
|
